Electric CM602 Feeder Calibration Jig SMT production line

Electric CM602 Feeder Calibration Jig SMT Production Line

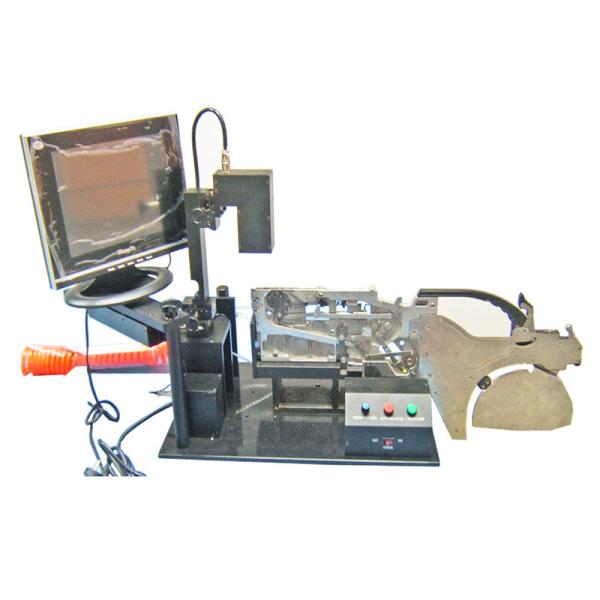

ORIGINAL SMT CM602 FEEDER CALIBRATION JIG

It is essential for this equipment that enhanced productivity , installation and quality improvement

As the high efficiency vision camera is asked in order to investigate precisely and repair the error of device position

which results from the modification and wear of tape feeder in the SMD device.

The Feeder, which supplies resources in the SMT production line, should be under clear condition continuously

because it has relatively close correclation with the quality of a current line, production efficiency and loss.

Convenience in use:

1. The acquisition for the rectangular coordinate of X-Y direction.

2. Check for the existence, transformation, user in the feeder

3. The installation is to euip it with actual device and consolidation in feeder base

4. Lens` safe arrival part, CCD Camera, the precise micro controller of X, Y, Z axis

5. The simple calibration for removing or taking feeder easily

6. It is correction as measurement with CCD Camera.

7. The use pressure is able to control in the regulator and air cylinder.

8. Verification and correction available worker`s convenience and well carriage by the work desk.

CM602 Feeder

CM602 Feeder Calibration Jig

SMT Feeder Calibration Jig
